From the heart of Hamilton, New Zealand, Neesham Flanges stands as a trusted source for industrial strength and reliability. We specialise in the manufacturing and supply of high-performance Titanium Flat Flanges, which are engineered to meet the most demanding challenges. Our commitment extends beyond just supplying a product; we provide a durable, precision-crafted solution for critical piping systems, backed by deep industry knowledge and a dedication to supporting New Zealand’s vital sectors with locally-made excellence.

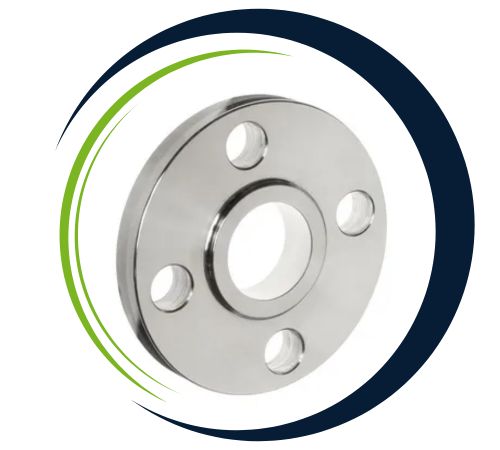

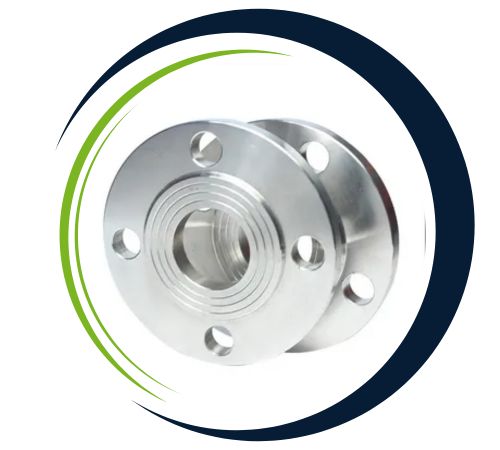

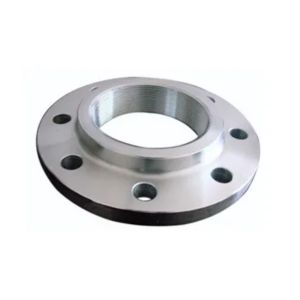

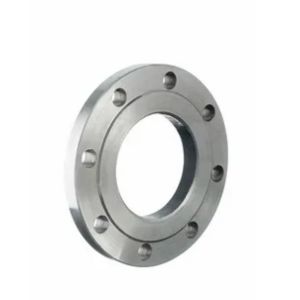

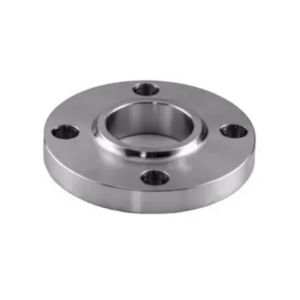

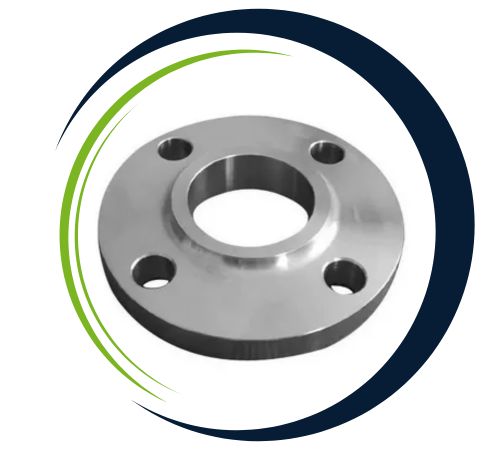

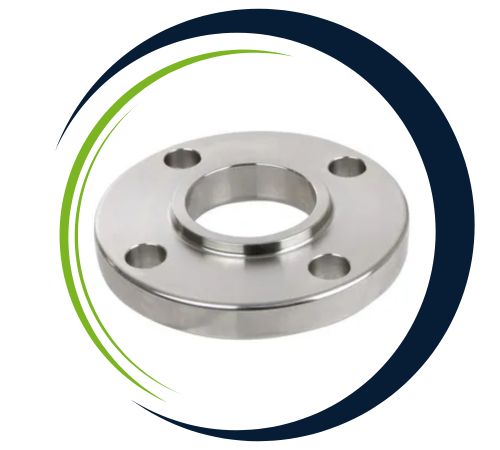

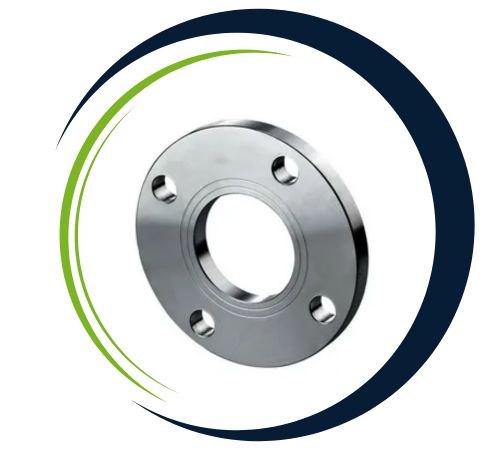

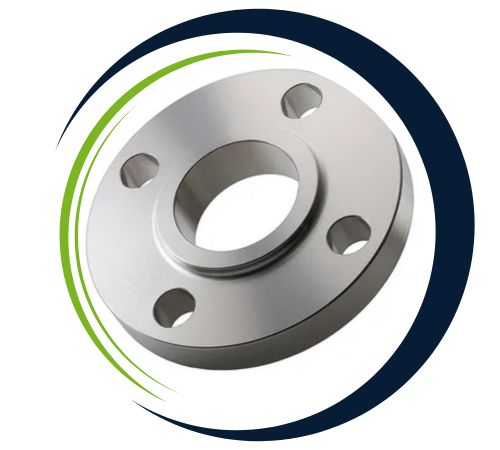

Our Titanium Flat Flanges are primarily crafted from commercially pure grades or alloys like Grade 5 (Ti-6Al-4V), giving them an exceptional strength-to-weight ratio that surpasses many steels. This composition grants them outstanding resistance to a wide range of corrosive enemies, from saltwater to harsh chemicals. Despite their incredible durability, they remain remarkably lightweight, which simplifies handling and installation without ever compromising on their mechanical integrity or long-term performance in punishing environments.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Neesham Flanges, a leading supplier in Hamilton, New Zealand, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Flat titanium flanges have extensive industrial use for corrosion-resistant and secure connections where many industries call upon. It is used in the oil and gas industry for those high-pressure, hostile condition pipeline systems where reliability must be a consideration. In the chemical industry as well, these flanges make for a great, corrosion-resistant seal. Along with thin marine and offshore titanium flanges that are resistant to corrosion by seawater and offer long-term performance in aggressive environments. They are applied in the power generation and aerospace sectors.
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
