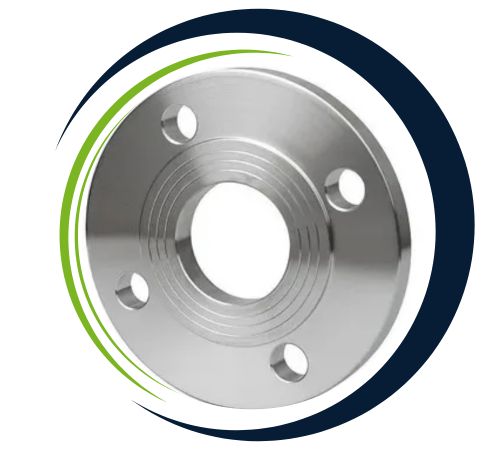

Based in the industrious heart of Hamilton, New Zealand, Neesham Flanges has built a reputation for precision and reliability in the supply of high-performance components. Our focus on Hastelloy Plate Flanges reflects a commitment to serving demanding industries with solutions that can withstand the most challenging environments. We understand that in sectors like chemical processing and offshore engineering, failure is not an option, which is why we ensure every flange we manufacture and supply meets the highest standards of quality and material integrity, right here from our New Zealand base.
The exceptional qualities of Hastelloy stem from its sophisticated nickel-chromium-molybdenum composition, often enhanced with elements like tungsten. This alloy family is specifically engineered to retain its strength and resist an extraordinary range of threats, including pitting, corrosion from chlorides, and oxidation at high temperatures. These plate flanges are crafted to maintain their structural integrity and mechanical properties, offering superior performance where ordinary stainless steels would quickly succumb, ensuring a long service life even under the most severe thermal and chemical stress.

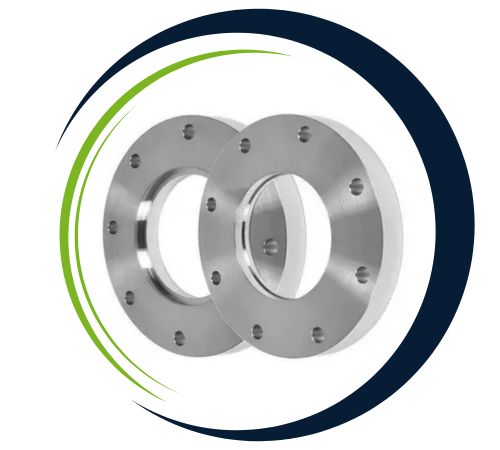

Hastelloy Plate Flanges Specification : ASTM B564 / ASME SB564
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Neesham Flanges, a premier supplier in Hamilton, New Zealand, specializes in high-quality Hastelloy Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Hastelloy Plate Flanges are widely used in industries requiring exceptional corrosion resistance and durability. Common applications include chemical processing, where they withstand harsh acids, alkalis, and oxidizing agents, and marine environments, where their resistance to seawater corrosion is critical. They are also used in oil and gas systems for handling aggressive fluids and in power plants for high-temperature operations. Their robust mechanical properties and reliability make them ideal for pressure vessels, heat exchangers, and pipelines in demanding environments, ensuring long-term performance and leak-proof connections.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|

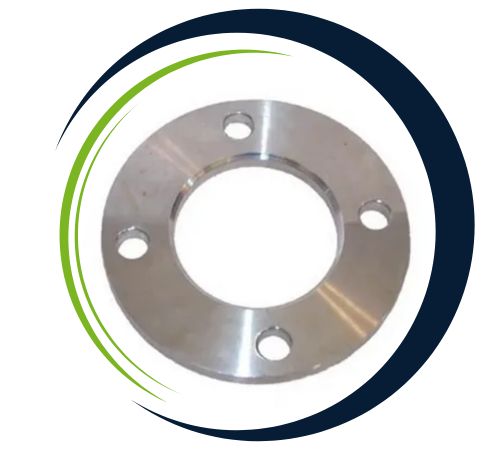

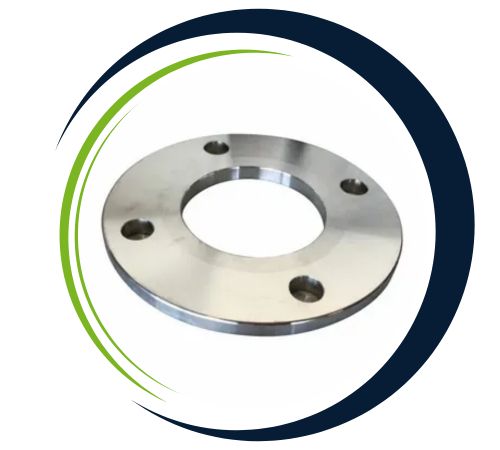

| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |

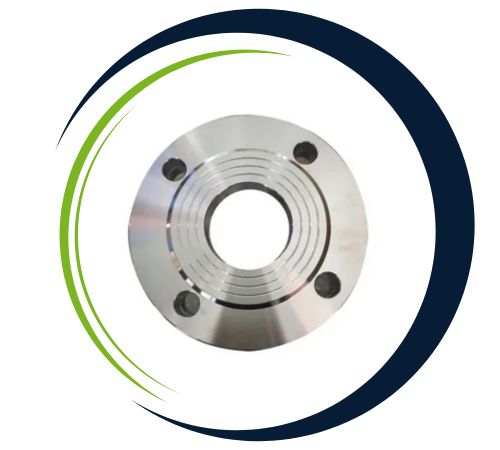

| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Yes, we offer custom sizes for Hastelloy Plate Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
