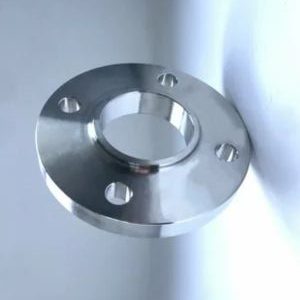

From the heart of Hamilton, New Zealand, Neesham Flanges stands as a trusted manufacturer and supplier of high-quality piping components. Our expertise shines with the DIN 2642 PN10 Lap Joint Flange, a design that offers exceptional flexibility for piping systems. This particular style is prized for its ease of installation and maintenance, making it a go-to solution for industries that require frequent assembly and disassembly, all while upholding the reliable performance that the Neesham name guarantees.
Crafted for resilience, the composition of these flanges typically involves robust carbon steel, ensuring they can handle demanding environments. The mechanical properties are precisely defined to meet the stringent requirements of the DIN 2642 standard for a pressure rating of PN10. This guarantees excellent tensile strength and durability, allowing the flange to perform reliably under significant pressure and stress, providing a secure and long-lasting connection point in your pipeline infrastructure.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
