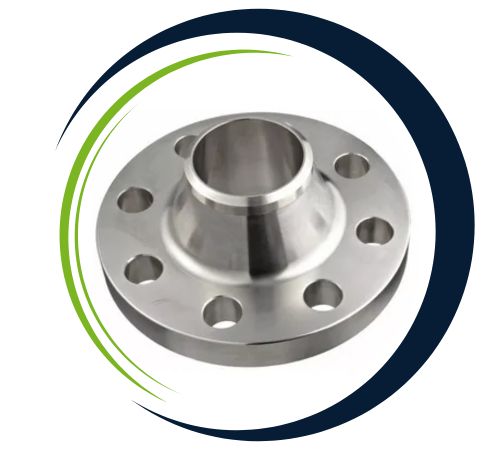

Nestled in the heart of Hamilton’s industrial landscape, Neesham Flanges has built a solid reputation for delivering robust and reliable piping solutions. Our focus on the DIN 2634 PN25 Weld Neck Flange exemplifies this commitment, providing a critical link for high-pressure systems where integrity is non-negotiable. We understand that the strength of your project depends on the quality of its components, which is why we ensure these flanges are precision-engineered to offer a secure, leak-proof connection that stands up to the most demanding applications, backed by our local expertise and dependable supply.
Crafted to meet the exacting standards of DIN 2634 PN25, these weld neck flanges are typically forged from high-grade carbon steel, ensuring a composition that balances strength with durability. This material provides excellent mechanical properties, including a substantial tensile strength and a high yield point, which are essential for handling the significant pressures and structural loads the PN25 rating demands. The meticulous manufacturing process guarantees that each flange possesses the necessary toughness and resilience to perform reliably in challenging environments, maintaining seal integrity under stress.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2634 welding neck flanges; nominal pressure 16 |
||||||||||||||||
|
Brides à souder à collerette DIN 2634: pression nominale 16 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| (175) | 193,7 | – | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | – | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | – | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| – | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | – | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| – | 419 | 36,3 | ||||||||||||||
| (450) | 457 | – | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | – | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | – | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | – | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | – | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | – | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | – | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |
Neesham Flanges, a leading supplier in Hamilton, New Zealand, offers an extensive selection of DIN 2634 PN25 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2634 PN25 Weld Neck Flanges are used in high-pressure piping systems across industries such as oil and gas, petrochemical, power generation, and chemical processing. Their robust design ensures secure, leak-proof connections between pipes, valves, and equipment, making them ideal for applications exposed to extreme temperatures and pressures. These flanges are commonly installed in critical systems, including pipelines, pumps, compressors, and reactors, where performance, durability, and safety are paramount. Their ability to handle demanding environments ensures reliable operation and long-term system integrity.
Yes, we offer custom sizes for DIN 2634 PN25 Weld Neck Flanges to meet specific project needs. Our team at Neesham Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@neeshamflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Raised Face DIN 2634 PN25 Weld Neck Plate Flanges | Titanium DIN 2634 PN25 Welding Neck Flanges |
| DIN 2634 PN25 Weld Neck Flange Manufacturer | Flat Face DIN 2634 PN25 Weld Neck Flange Manufacturer |
| 30 inch DIN 2634 PN25 Weld Neck Flange Dealer | Raised Face DIN 2634 PN25 Weld Neck Flanges Manufacturer |
| DIN 2634 PN25 Weld Neck Pipe Flanges Wholesaler | DIN 2634 PN25 WNRF Flanges Supplier |
| DIN 2634 PN25 WNRF Flange Stockist in New Zealand | Raised Faced DIN 2634 PN25 Slip-On flanges Dealer in New Zealand |
| Alloy Steel DIN 2634 PN25 Welding Neck Flanges | Copper Nickel DIN 2634 PN25 Weld Neck Flanges at Best Price |
| DIN 2634 PN25 Welding Neck FF Flange Supplier | Suppliers of DIN 2634 PN25 Weld Neck Flange |
| DIN 2634 PN25 WNRF Flanges Distributor in Hamilton | Flat Face DIN 2634 PN25 Weld Neck Flanges Exporter |
| DIN 2634 PN25 WNRF Flanges Supplier in Wellington | Alloy Steel DIN 2634 PN25 Weld Neck Flanges Manufacturer in New Zealand |
| Nickel Alloy DIN 2634 PN25 Welding Neck Flange | Mild Steel DIN 2634 PN25 Weld Neck Flange |
| ASME SA105N Raised Faced DIN 2634 PN25 Weld Neck Flanges | 18 inch Carbon Steel DIN 2634 PN25 Weld Neck Flange |
| 18 inch DIN 2634 PN25 Carbon Steel Weld Neck Flange | DIN 2634 PN25 Weld Neck Flange Dimensions in mm |
| DIN 2634 PN25 Welding Neck Flanges Supplier in Tauranga | MS DIN 2634 PN25 Weld Neck Flange |
| DIN 2634 PN25 Large Diameter Weld Neck Flange | 30 Inch DIN 2634 PN25 Weld Neck Pipe Flange Dimensions |
| 4 inch Stainless Steel DIN 2634 PN25 Weld Neck Flange | DIN 2634 PN25 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2634 PN25 Welding Neck Flange | DIN 2634 PN25 Weld Neck RF Flange Supplier |
| Carbon Steel Raised Face DIN 2634 PN25 Weld Neck Flange Stockist | Duplex Steel DIN 2634 PN25 WNRF Flanges Supplier in Hamilton |
| German Standard DIN 2634 PN25 Weld Neck Flanges | DIN 2634 PN25 Weld Neck Flange Supplier in New Zealand |
| 8 Inch DIN 2634 PN25 Welding Neck Pipe Flanges | DIN 2634 PN25 Weld Neck Flanges Stockist |
| DIN 2634 PN25 Weld Neck Pipe Flanges Supplier in Auckland | Duplex Steel DIN 2634 PN25 Weld Neck Flanges |
| Stainless Steel DIN 2634 PN25 Weld Neck Flange | ASTM B564 Raised Faced DIN 2634 PN25 Weld Neck Flanges |
| DIN 2634 PN25 WNRF Flange Exporter | DIN 2634 PN25 Weld Neck Flange Pressure Ratings |
| DIN 2634 PN25 Weld Neck Flange Dimensions | Raised Face DIN 2634 PN25 Weld Neck Flange Manufacturer |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
